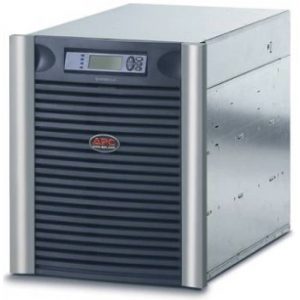

APC Symmetra LX 8 kVA Rack Mount, – SYA8K8RMP Rack-mount, is a highly available single phase UPS featuring redundant and scalable double-conversion on-line power protection. Redundant Intelligence Modules provide higher availability to the UPS connected loads by giving redundant communication.

APC Symmetra LX 8kVA, scalable to 8kVA N+1 Rack-mount, is a highly available single phase UPS featuring redundant and scalable double-conversion on-line power protection.

Output

• Output power capacity- 6.4 KWatts / 8.0 kVA
• Max Configurable Power (Watts)- 6.4 KWatts / 8.0 kVA
• Nominal Output Voltage- 120V , 208V
• Output Voltage Note- Configurable for 120/208 or 120/240 output voltage
• Efficiency at Full Load- 90.0%
• Output Voltage Distortion- Less than 5% at full load
• Output Frequency (sync to mains)- 47 – 63 Hz
• Output Frequency (not synced)- 60Hz +/- 0.1% for 60Hz nominal
• Other Output Voltages- 240
• Load Crest Factor- up to 5 : 1
• Topology- Double Conversion Online
• Waveform type- Sine wave
• Maximum Output Current- 37
• Output Connections- (2) NEMA L14-30R (Battery Backup) (4) NEMA L5-20R (Battery Backup)
• Bypass- Internal Bypass (Automatic and Manual), Optional External Bypass

Input

• Nominal Input Voltage- 208V
• Input frequency- 45 – 65 Hz (auto sensing)
• Input Connections- Hard Wire 4-wire (2PH+N+G)
• Input voltage range for main operations- 96-138 (Line to Neutral) V
• Input Total Harmonic Distortion- Less than 7% for full load
• Other Input Voltages- 240V
• Input Power Factor at Full Load- 0.98

Batteries & Runtime

• Battery type- Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules- 2
• Typical recharge time- 3 hour(s)
• Extendable Run Time- 1
• Battery Volt-Amp-Hour Capacity- 1728

Communications & Management

• Interface Port(s)- DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot
• Control panel- Multi-function LCD status and control console
• Audible Alarm- Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)- Yes
• Available SmartSlot™ Interface Quantity- 1

Physical

• Maximum Height- 22.5 inches ( 572 , 57.2 cm )
• Maximum Width- 18.6 inches ( 472 , 47.2 cm )
• Maximum Depth- 27.1 inches ( 688 , 68.8 cm )
• Rack Height- 13 U
• Net Weight- 392.0 lbs. ( 178.18 kg )
• Shipping weight- 477.0 lbs. ( 216.82 kg )
• Shipping Height- 31.0 inches ( 787 , 78.7 cm )
• Shipping Width- 23.6 inches ( 599 , 59.9 cm )
• Shipping Depth- 39.25 inches ( 997 , 99.7 cm )
• Color- Black , Silver
• Units per Pallet- 1.0

Environmental

• Operating Environment- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-10000 ft ( 0-3000 meters )
• Storage Temperature- -15 – 45 °C
• Storage Relative Humidity- 0 – 95 %
• Storage Elevation- 0-15000 ft ( 0-4500 meters )
• Audible noise at 1 meter from surface of unit- 62.0 dBA
• Online thermal dissipation- 3707.0 BTU/hr

Conformance

• Approvals- CSA, FCC Part 15 Class A, UL 1778
• Standard warranty- 1 year repair or replace
