High performance redundant power protection with scalable power and run time for IT and telecommunications equipment

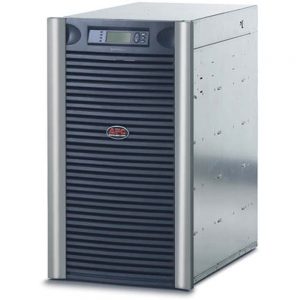

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.

Output

• Output power capacity- 6.4 KWatts / 8.0 kVA
• Max Configurable Power (Watts)- 12.8 KWatts / 16.0 kVA
• Nominal Output Voltage- 120V , 208V
• Output Voltage Note- Configurable for 120/208 or 120/240 output voltage
• Output Voltage Distortion- Less than 5% at full load
• Output Frequency (sync to mains)- 47 – 63 Hz
• Output Frequency (not synced)- 60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
• Other Output Voltages- 240
• Load Crest Factor- up to 5 : 1
• Topology- Double Conversion Online
• Waveform type- Sine wave
• Maximum Output Current- 37

Input

• Nominal Input Voltage- 208V
• Input frequency- 45 – 65 Hz (auto sensing)
• Input Connections- Hard Wire 4-wire (2PH+N+G)
• Input voltage range for main operations- 96 – 138 (Line to Neutral) V
• Input Total Harmonic Distortion- Less than 7% for full load
• Other Input Voltages- 240V
• Input Power Factor at Full Load- 0.98

Batteries & Runtime

• Battery type- Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules- 2
• Typical recharge time- 3 hour(s)
• Replacement Battery- SYBT5
• Battery Slots Empty- 2
• Extendable Run Time- 1
• Battery Volt-Amp-Hour Capacity- 1728
• Extended Run Options- APC-Symmetra-LX-8kVA-Scalable-to-16kVA-N-1-Rack-mount-208-240V

Communications & Management

• Interface Port(s)- DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot
• Pre-Installed SmartSlot™ Cards- AP9631
• Control panel- Multi-function LCD status and control console
• Audible Alarm- Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)- Yes
• Available SmartSlot™ Interface Quantity- 1

Physical

• Maximum Height- 32.9 inches ( 836 , 83.6 cm )
• Maximum Width- 18.6 inches ( 472 , 47.2 cm )
• Maximum Depth- 27.1 inches ( 688 , 68.8 cm )
• Rack Height- 19 U
• Net Weight- 437.0 lbs. ( 198.64 kg )
• Shipping weight- 527.0 lbs. ( 239.56 kg )
• Shipping Height- 41.5 inches ( 1054 , 105.4 cm )
• Shipping Width- 23.6 inches ( 599 , 59.9 cm )
• Shipping Depth- 39.26 inches ( 997 , 99.7 cm )
• Color- Black , Silver
• Units per Pallet- 1.0

Enviromental

• Operating Environment- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-10000 ft ( 0-3000 meters )
• Storage Temperature- -15 – 45 °C
• Storage Relative Humidity- 0 – 95 %
• Storage Elevation- 0-15000 ft ( 0-4500 meters )
• Audible noise at 1 meter from surface of unit- 62.0 dBA
• Online thermal dissipation- 4995.0 BTU/hr
