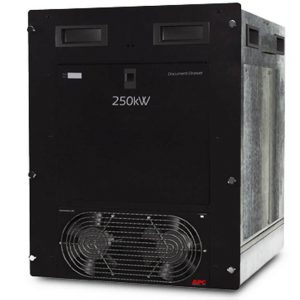

Static Switch Module is designed rack-based architecture for power, cooling, and environmental management. It features built-in static bypass switch.

Output

• Output power capacity- 250.0 KWatts / 250.0 kVA
• Max Configurable Power (Watts)- 250.0 KWatts / 0 VA
• Nominal Output Voltage- 400V 3PH , 480V 3PH
• Output Connections- (2) Anderson (Battery Backup)

Input

• Nominal Input Voltage- 400V 3PH , 480V 3PH

Physical

• Maximum Height- 23.27 inches ( 591 mm , 59.1 cm )
• Maximum Width- 19.33 inches ( 491 mm , 49.1 cm )
• Maximum Depth- 33.07 inches ( 840 mm , 84.0 cm )
• Net Weight- 174.0 lbs. ( 79.09 kg )
• Shipping weight- 231.0 lbs. ( 105.0 kg )
• Shipping Height- 36.61 inches ( 930 mm , 93.0 cm )
• Shipping Width- 30.71 inches ( 780 mm , 78.0 cm )
• Shipping Depth- 36.02 inches ( 915 mm , 91.5 cm )
• Color- Black
• Units per Pallet- 1.0

Enviromental

• Operating Environment- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-3333 ft ( 0-999.9 meters )
• Storage Temperature- -15 – 40 °C
• Storage Relative Humidity- 0 – 95 %
• Storage Elevation- 0-50000 ft ( 0-15000 meters )
