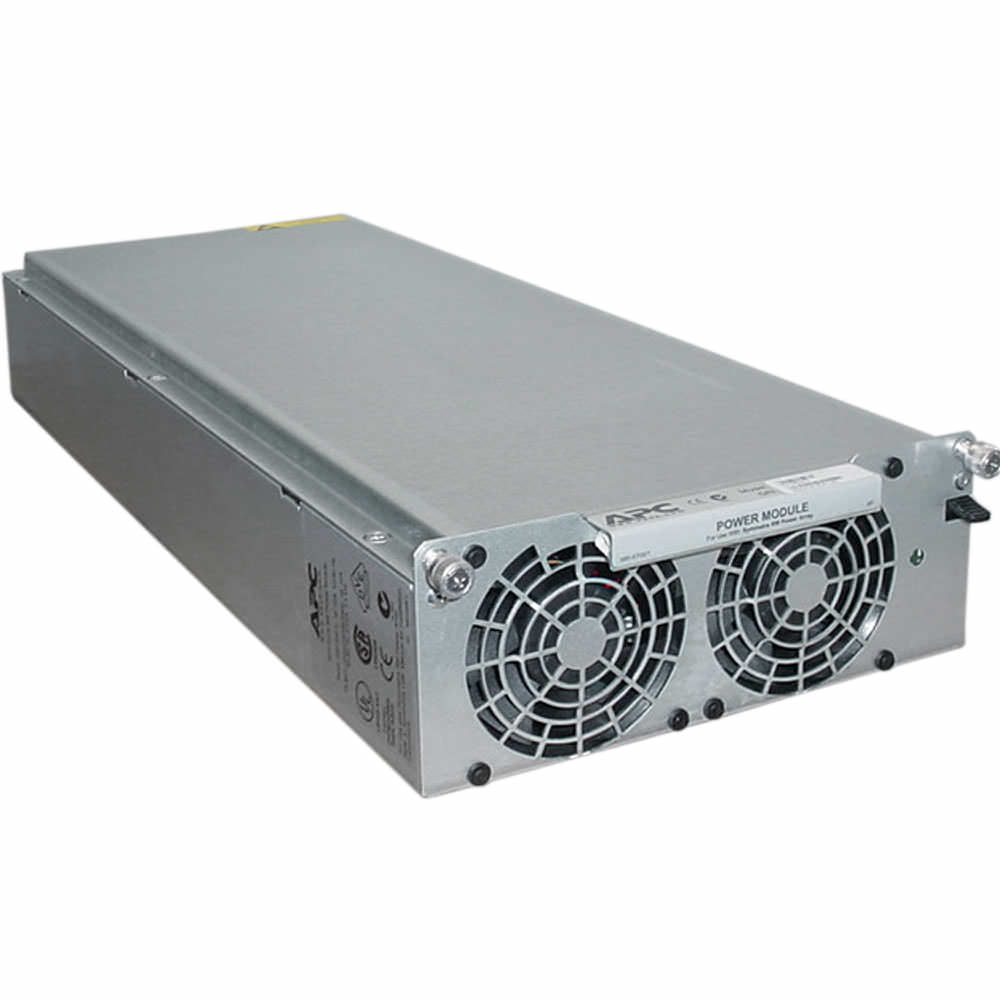

The APC Symmetra RM 2kVA SYPM2KU offers increased scalable power to the Symmetra family of UPS systems. This 2,800-watt/4,000-volt ampere power module allows users to immediately increase the maximum output power available from their Symmetra UPS units. This power module has a hot-swappable design for easy installation and ensures clean, uninterrupted power to protected equipment during power module replacement. The power module is also configurable with the redundant N+1 architecture of your Symmetra UPS, enabling the UPS to withstand module failures without disrupting power to connected devices.

Output

• Output power capacity- 2.0 kVA
• Max Configurable Power (Watts)- 2.0 VA
• Nominal Output Voltage- 200V , 208V , 230V

Input

• Nominal Input Voltage- 200V , 208V
• Input frequency- 50/60 Hz +/- 5 Hz (auto sensing)
• Number of Power Cords- 1

Conformance

• Maximum Height- 3.25 inches ( 83 mm , 8.26 cm )
• Maximum Width- 8.5 inches ( 216 mm , 21.59 cm )
• Maximum Depth- 21.5 inches ( 546 mm , 54.61 cm )
• Net Weight- 17.0 lbs. ( 7.73 kg )
• Shipping weight- 20.0 lbs. ( 9.09 kg )
• Shipping Height- 9.75 inches ( 248 mm , 24.77 cm )
• Shipping Width- 14.0 inches ( 356 mm , 35.56 cm )
• Shipping Depth- 26.0 inches ( 660 mm , 66.04 cm )

Conformance

• Standard Warranty- 1 year repair or replace
