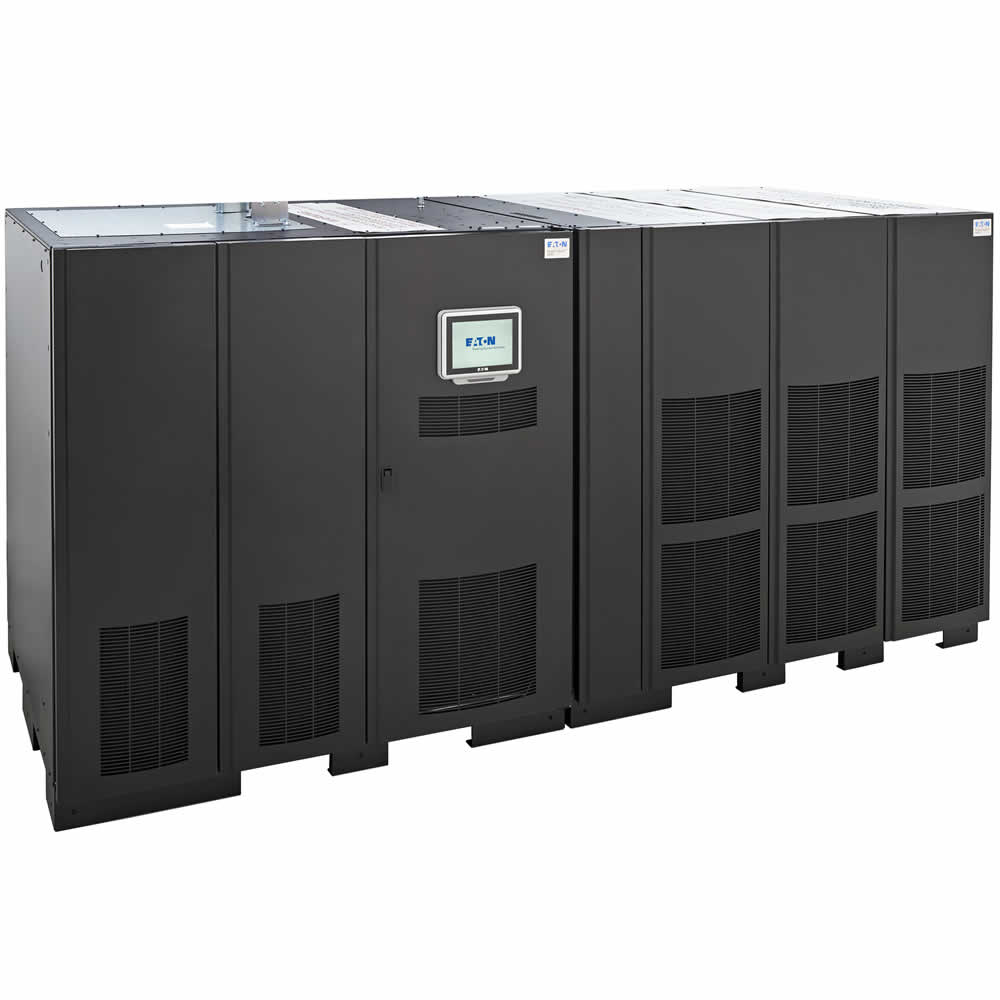

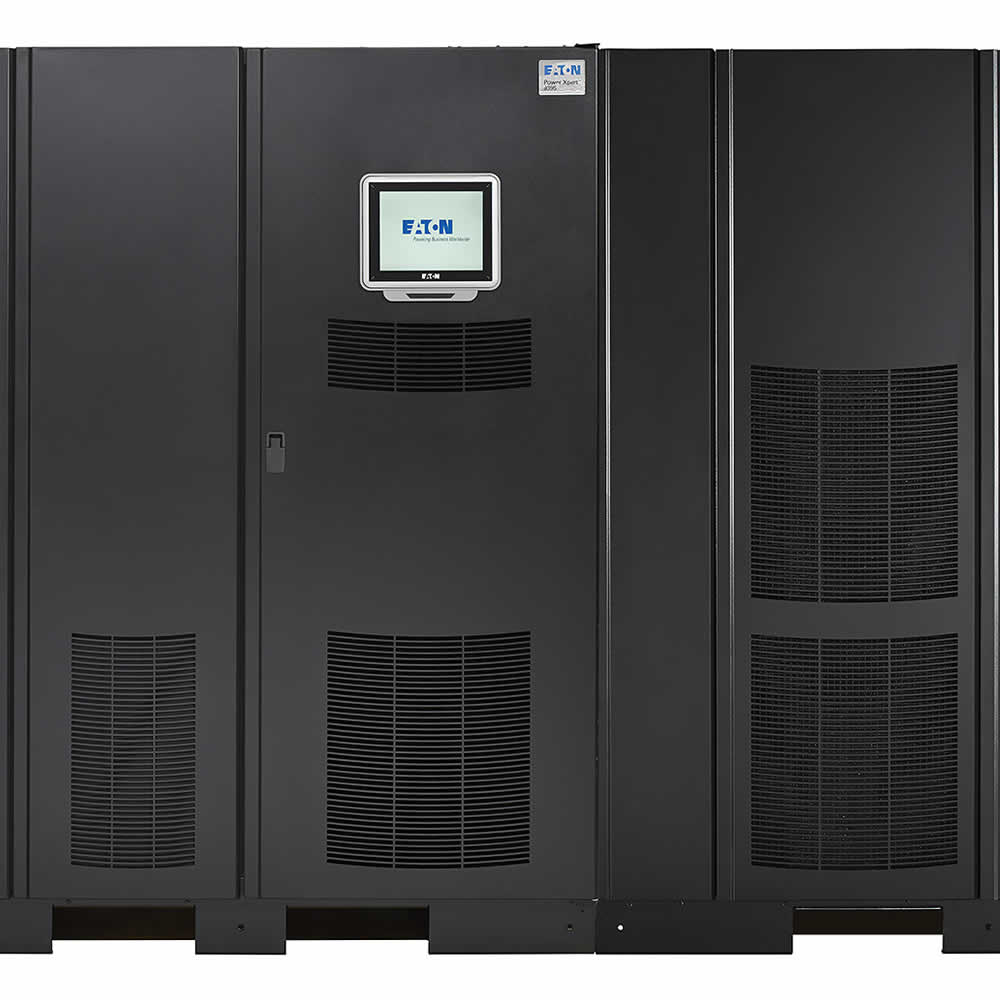

Eaton Powerware 9395-275 275kVA 480 volt is an energy-efficient Power Xpert 9395 Backup Power System. This UPS is designed to provide backup power and scalable battery run times in a small footprint for large data centers, healthcare applications, and other critical systems. With the ground-breaking Energy Saver System, which can be monitored and managed on its new LCD touchscreen, the 9395 operates at 99% efficiency and can pay for itself in three to five years, without sacrificing reliability!
Features
• Efficiency- 94% (99% with Energy Saver system) For industry-leading 97% double-conversion and 400V available
• Parallel Capability- 4 distributed, 32 with SBM
• Audible Noise- 76 dBA @ 1 meter
• Frequency range- 45-65 Hz
• Power factor- 0.99 (minimum)
• Input current distortion- <3.5% (no input filter required)
• Soft start capability- Yes
• Internal backfeed protection- Yes
Output
• Voltage- 480V standard; and 400V available
• Regulation- ± 1%
• Inverter- PWM with IGBT switching
• Voltage THD- <2% (100% linear load); <5% (non-linear load)
• Load power factor range- Up to a .9 power factor leading without derating
Battery
• Battery types- VRLA, AGM, Wet Cell
• Battery voltage- 480 V
• Temperature compensation- Optional
• Charging method- ABM Technology or Float, Selectable
Dimensions and Weights
• 225 kVA, 250 kVA, 275 kVA- 52.8”w x 34.4”d x 73.9”h- 1900 lb
• 225, 250, 275 kVA redundant- 73.6”w x 34.4”d x 73.9”h- 3150 lb
• 450, 500, 550 kVA- 73.6”w x 34.4”d x 73.9”h- 3274 lb
• 450, 500, 550 kVA redundant- 102.9”w x 34.4”d x 73.9”h- 4654 lb
• Field upgrade module, 225, 250, or 275 kVA- 29.3”w x 34.4”d x 73.9”h- 1380 lb
• 650, 750, 825 kVA- 140.3″w x 34.4″d x 73.9″h- 5550 lb
• 650, 750, 825 kVA +1 redundant- 169.6″w x 34.4″d x 73.9″h- 6930 lb
• 1000, 1100 kVA- 169.6″w x 34.4″d x 73.9″h- 7050 lb
General Characteristics

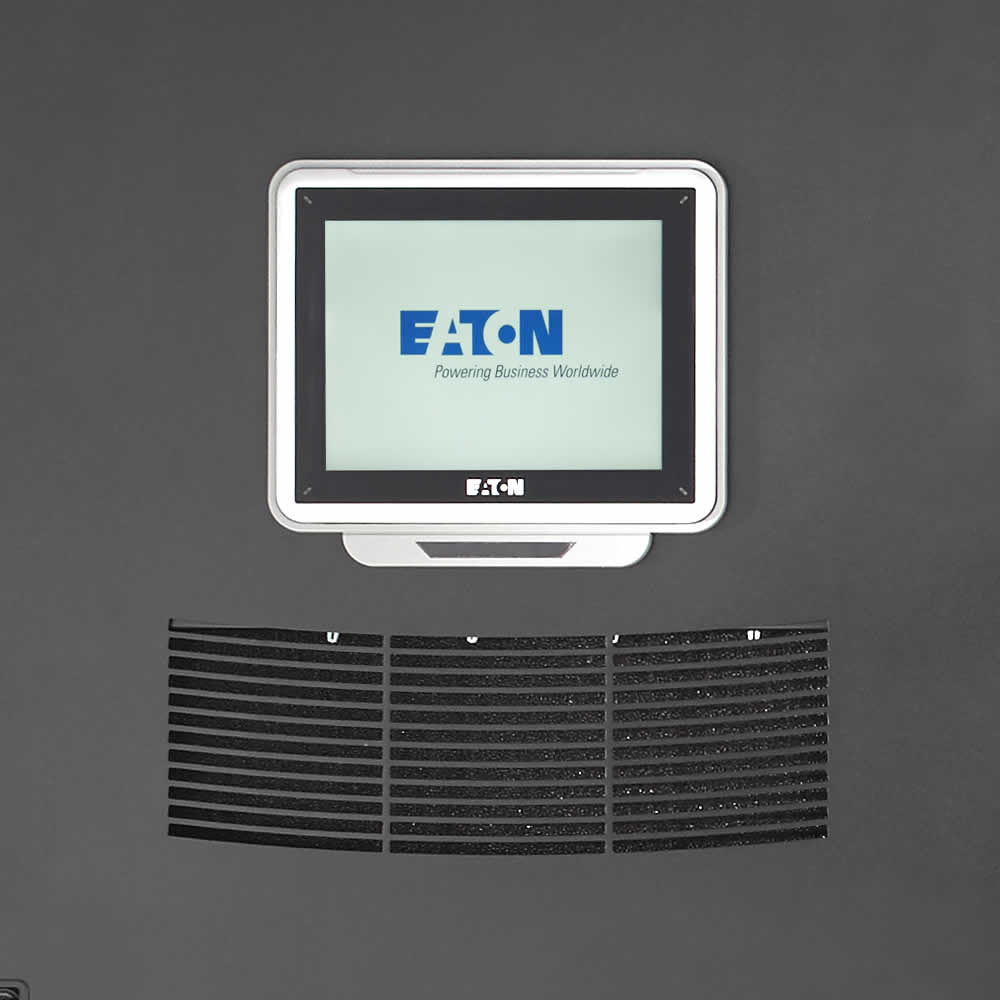

• Control panel (LCD)- 10 Inch Color Screen with LED technology
• Battery startup- Standard
• Frequency conversion- Standard
• Multi-language- Standard
• Buildings alarm inputs- 5 (galvanic isolated)
Options
• External maintenance bypass
• PDU, RPP, and STS
• Maintenance bypass module, matching cabinet, 2/3/4 breaker
• DC disconnects
• 65 or 100 kAIC input breakers
Communication
• Communications Cards- Four communication bays standard.
• Remote Inputs/Outputs- Five building alarm inputs and one summary alarm contact (5A @ 120V) standard,Remote Monitor Panel,Eight backlit status indicator lamps plus an audible horn
