FIAMM 12 volt 9 amp hr battery 12FGH36 are in stock and ready to ship immediately. Pallet pricing guarantees the best possible pricing.

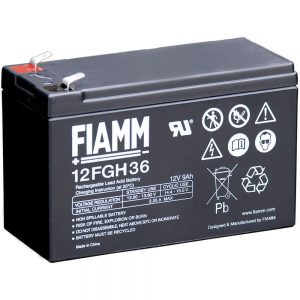

Fiamm 12FGH36, is an high rate battery specifically designed for UPS applications. Fiamm FGH range of batteries ensure the correct battery is supplied to the appropriate application. FIAMM is a Manufacturer of VRLA batteries and is supported by a dedicated sales network with market knowledge and experience of small sealed lead acid battery applications.

Features
Nominal Voltage 12 Volt
Nominal Capacity 36.2 W @ 15 min-rate to 1.6 Vpc at 25 °C
9.0 Ah 20 hours rate to 1.75 Vpc at 25 °C
Float charging voltage 13.50 – 13.80 V/bloc at 25 °C
Boost charge voltage 14.40 – 15.00 V/bloc at 25 °C
Float voltage compensation -18mV/°C
Maximum charging current 1.25 A
Case ABS with HB flammability rate (according UL 94)
Internal resistance 23.6 mΩ in full charged condition
Weight 2.73 kg
Dimensions L x W x H (TH): 151 x 65 x 94 (99)
Operative temperature range -20 °C to 50 °C
Shelf life procedures As batteries lose part of their capacity, during storage, due to self discharge.
Fiamm recommends FGH range of batteries can be stored for 6 months at an ambient

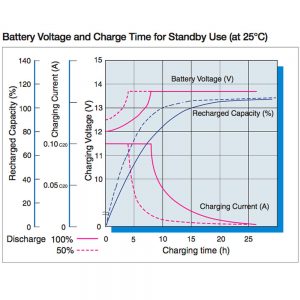

temperature of 20 and 25 °C (see attached graph on reverse). Longer storage requires
a recharge. This should be carried out in line with Fiamm recommended method; 2.4
V/cell for no longer than 24 hours at 20 °C
