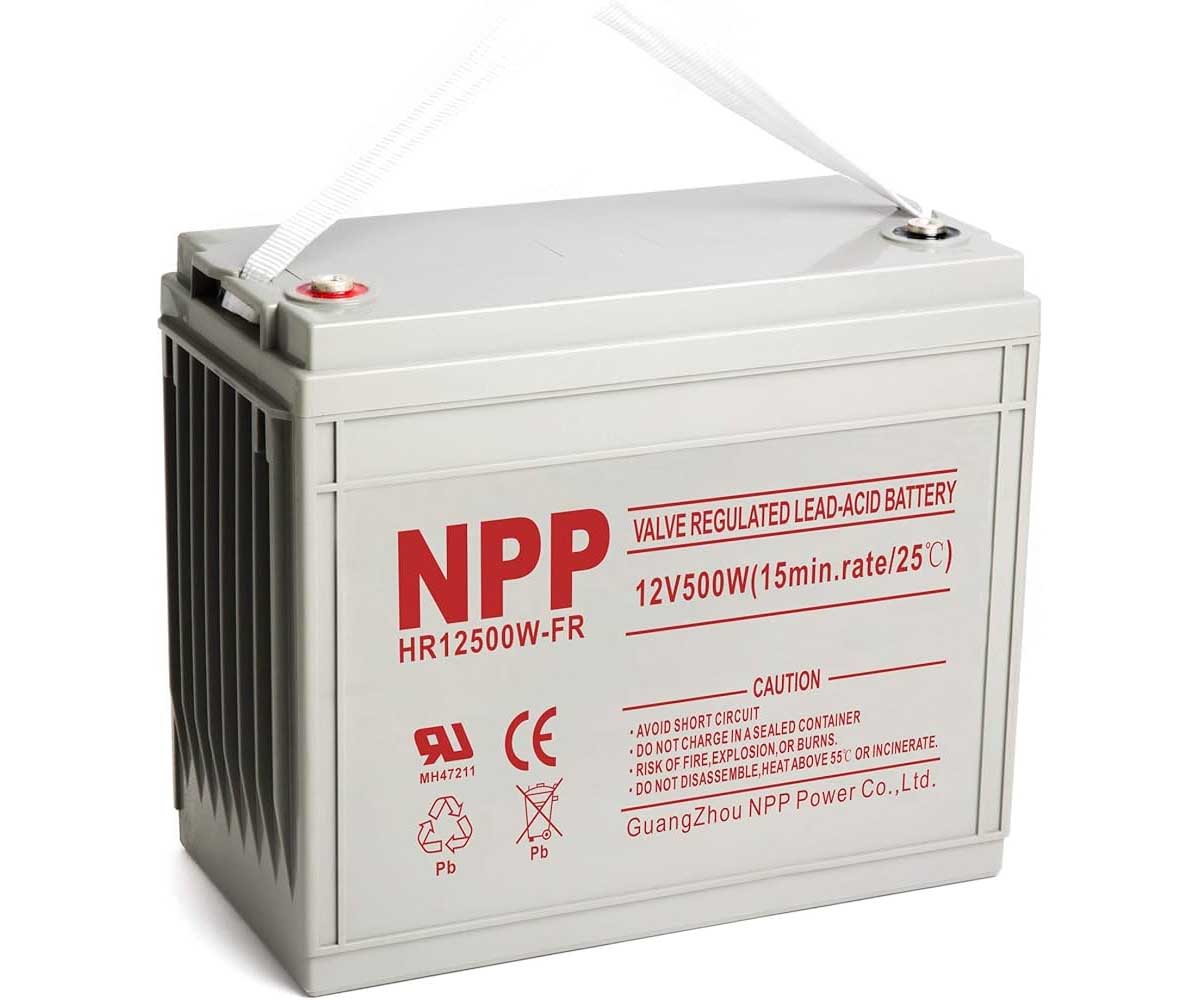

NPP Batteries - HR12500W-FR 12V135AH (T16A)

NPP Batteries – HR12500W-FR 12V135AH (T16A)

$415.00

NPPower’s High Rate series batteries are specially designed for applications that require high power output. With their high-power density and low internal resistance, the High-Rate series is the right choice for your most demanding applications.

SKU: HR12500W-FR Categories: ,

Highlights:

  • Operation at low internal pressure
  • Positive and negative plates in lead-calcium-tin alloy
  • Superior energy density
  • Very high power output
  • Container available in flame retardant (UL 94-V0)

Specifications:

  • Model number: HR12500W-FR
  • Number of cell: 6 cells
  • Nominal voltage: 12V
  • Rated capacity: 500watt/cell, 140Ah
  • Terminal type: T16A
  • Internal resistance (25 C): Approx. 3.8mΩ
  • Float charging voltage (25 C): 13.5 to 13.8V temperature compensation: -18m V/C
  • Cyclic charging voltage (25 C): 14.5 to 15V temperature compensation: -30mV/C.
  • Maximum charging current: 42A
  • Terminal Material: Copper
  • Maximum discharge current (25 C): 1050A (5sec.)
  • Dimensions (L x W x H): 13.46 x 6.77 x 11.20 inch
  • Weight: 97.0 lbs
Weight 100 lbs
