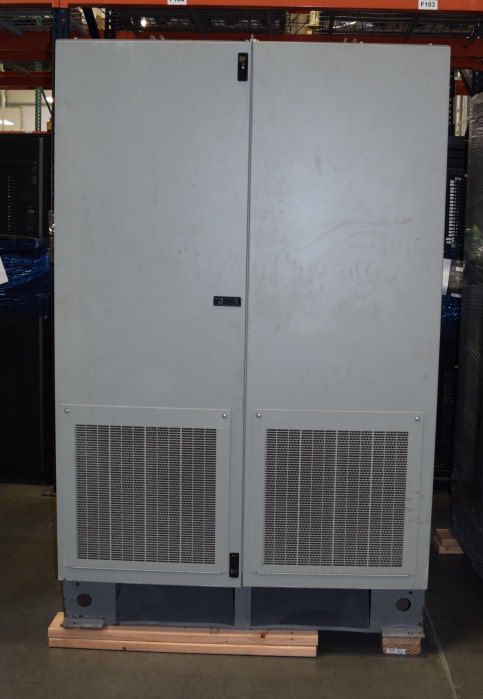

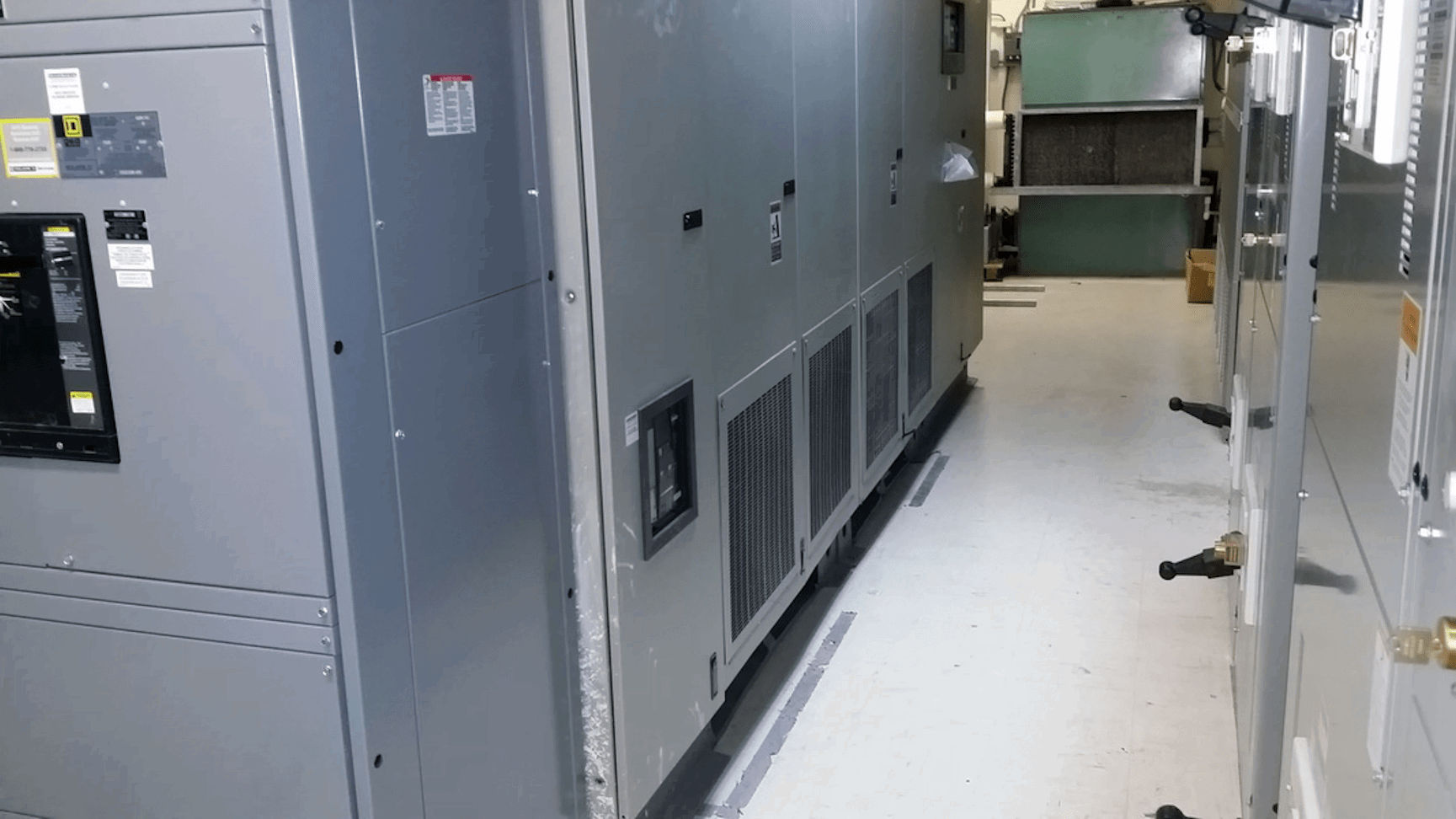

1000 kVA Liebert 610T, one meg of power for your critical infrastructure. We have a tested and ready to ship one meg Liebert UPS in stock. Liebert has been the UPS of choice since the earliest days of the UPS. All UPS are professionally refurbished and load tested. We invite you to witness test this UPS system in our new state of the art facility, we will pay up to $500.00 for your travel to Phoenix.
Standard Features
• 12-pulse 3-phase rectifier/charger
• Input and Output isolation transformers
• Electrically operated output circuit breaker and wrap-around bypass circuit breaker on Single-Module Systems (SMS)
• Static bypass switch with isolators on SMS
• Bypass pulse-paralleling on SMS and Automatic retransfer on SMS
• Enhanced output critical bus and internal fault management
• High overload capability
• Two-step input current limit and two-step battery charger current limit
• Automatic equalize charger and timer
• Application Specific Integrated Circuits (ASICs)
• Microprocessor- based monitoring with easy-to-read back-lit LCD display
• User prompted menu program
• Metering: Visual & Audible alarms
• Remote E.P.O. provisions
• Redundant cooling fans
• Front access for maintenance and service
Technical Specifications
• Voltage- 480 or 600 VAC, 3-phase, 3-wire plus ground.
• Voltage Range- +10, -15% (no battery discharge down to -20%)
• Power Factor- 0.92 lagging at full load with input filter (0.85 without)
• Frequency Range- 60 Hz, ±5%.
• Current Distortion- 4% maximum reflected THD at full load with optional input filter (9% without)
• Subcycle Magnetizing Inrush- 5-8 times normal full load current.
• Walk-In- Configurable walk in of 20% to 100% o ver 15 seconds.
• Output and Bypass Voltage- 480 or 600 VAC, 3-phase, 3-wire or 4-wire plus ground.
• Voltage Adjustment- ±5%.
• Voltage Regulation- ±0.5% for balanced load; ±2% for 50% unbalanced load.
• Dynamic Regulation- ±8% deviation for 100% load step. ±5% deviation for 50% load step. ±1% for loss or return of AC input. Manual return of load to UPS- ±4%.
• Transient Response Time- Recover to ±1% of steady state within 50 milliseconds.
• Voltage Distortion- For linear loads, 5% THD, maximum total. 3% RMS maximum for any single harmonic. Less than 5% THD for 100% nonlinear loads without kVA/kW derating.
• Phasing Balance- 120°±1°for balanced load. 120°±3°for 50% unbalanced load.
• Frequency Regulation- ±0.1%.
• Load Power Factor Range- Unity to rated lagging power factor without derating.
• Overload- 125% of full load for ten minutes. 150% for 30 seconds . 104% continuous.
• Fault-Clearing Current- Up to 1000% for 16 milliseconds up to 500% for 40 mliseconds.
