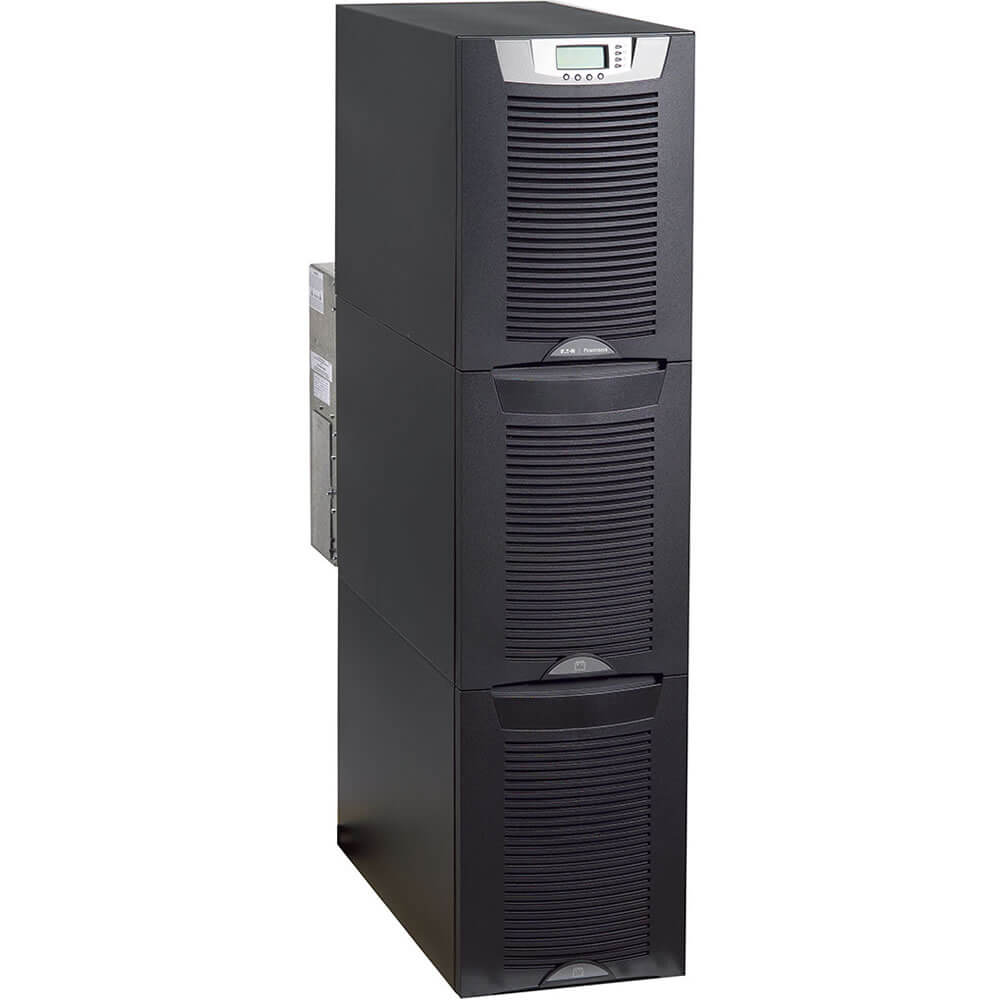

The Eaton 9355 15kVA UPS provides premium double-conversion backup power and scalable battery runtimes for IT and electrical engineering infrastructure in corporate, healthcare, banking and industrial applications. Packing maximum battery runtime into a very small footprint, the 9355 UPS is a complete three-phase power protection solutionç. The 9355 can be equipped with an integrated, customizable power distribution module that includes a maintenance bypass switch.

General

• Product Type- Power array
• Subcategory- UPS

UPS

• Batteries Qty- 64
• Battery Technology- Lead acid
• Battery Capacity- 9
• Supported Batteries Qty- 64

Battery

• Enclosure Type- Internal

Interface

• Qty- 1
• Connector Type- 9 pin D-Sub (DB-9)
• Type- Management (RS-232)
• Type- EPO (emergency power off)

Enviromental

• Sound Emission- 56 dBA
• Min Operating Temperature- 50 °F
• Max Operating Temperature- 104 °F
• Humidity Range Operating- 0 – 95%

Networking

• Remote Management Protocol- HTTP, SNMP
• Remote Management Interface- RS-232

Power device

• Voltage Required Margin- + 10% / – 15%
• Frequency Required- 45 – 65 Hz
• Power Provided- 13.5 kW
• Frequency Provided- 50/60 Hz
• UPS Technology- On-line
• Form Factor- External
• Power Device Features- Audible alarm, LCD display, LED display
• Input Wiring- 3-phase
• Power Capacity (VA)- 15000 VA

Slot Provided

• Type- X-Slot
• Total Qty- 2

Software

• Type- Drivers & Utilities

Dimensions & Weight

• Width- 12.8 in
• Depth- 33.5 in
• Height- 47.8 in
• Weight- 608.47 lbs
