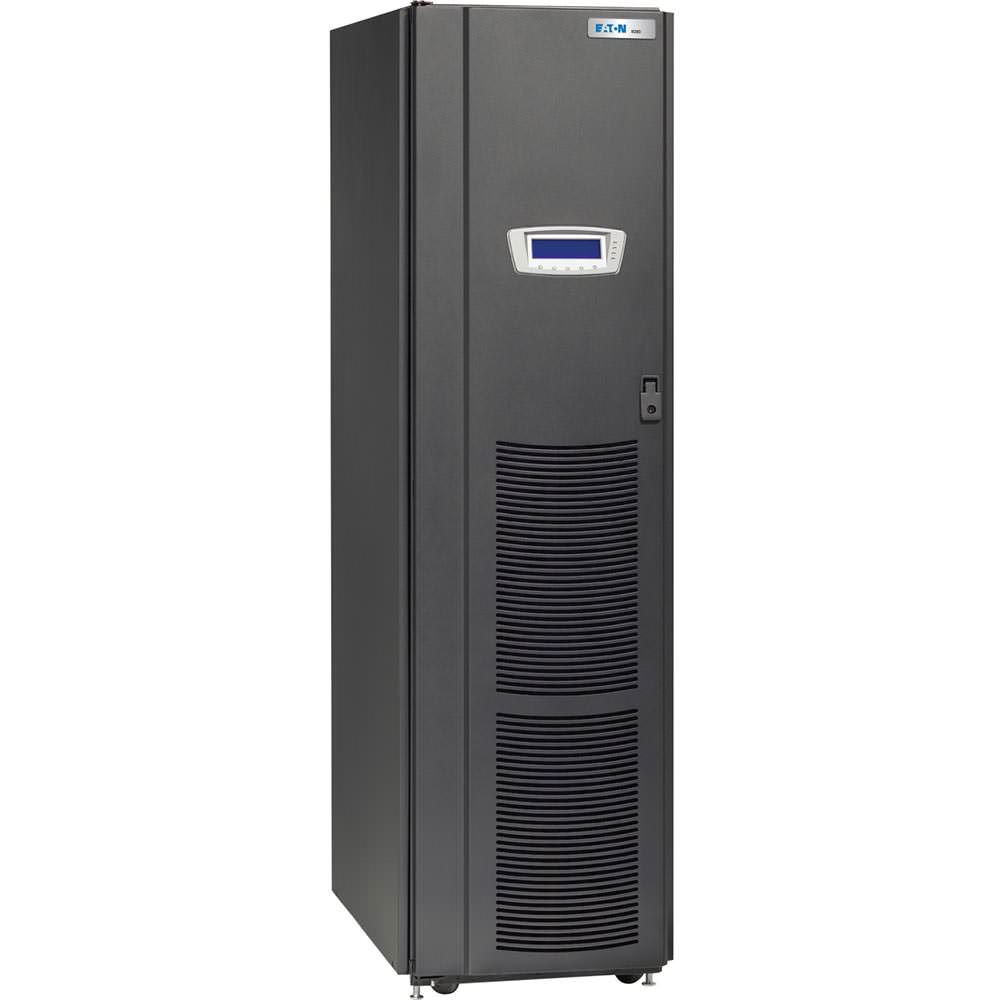

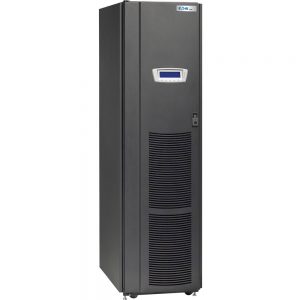

The energy-efficient Eaton 9390-80 Model – 50kVA 480V UPS provides backup power and scalable battery runtimes in a small footprint for mid-size data centers, medical equipment and other critical systems. With the groundbreaking Energy Saver System, the 9390 operates at 99% UPS efficiency and can pay for itself in three to five years—without sacrificing reliability.
General
• Efficiency- 99% with Energy Saver Mode
• Parallel Capability- Four modules with tie cabinet
• Audible Noise- <65 dBA @ 1 meter
• Altitude (max)- 2000m at 104°F (40°C)
Input
• Voltage- 208,380,400,415,480,600
• Voltage Range- +10% / -15%2
• Frequency range- 55-65 Hz
• Power Factor- 0.99 (min)
• Input Current Distortion-
• Soft Start Capability- Yes
• Internal Backfeed Protection- Yes
• Broadcast global support- Yes
Output
• Voltage- 208,380,400,415,480,600
• Regulation- ±1%
• Inverter- PWM with IGBT Switching
• Voltage THD- < 2% (100% linear load);< 5% (non-linear load)
• Load Power Factor Range- Down to 0.9pf leading without de-rating
• Heat dissipation (BTU/Hr x 1000/Hr)- 380-480v: 21.9
Battery
• Battery types- VRLA, AGM, Gel, Wet, Eaton batteries also available
• Battery voltage- 384 – 480 V
• Temperature Compensation- Optional
Dimensions and Weights
• Height- 73.7 in
• Width- 18.9 in
• Depth- 31.6 in
• Weight- 408v- 568 lb
Serviceability
• Back/Side Against Wall Installation- Standard
Accessories
• Module tie cabinet- Optional
• External Maintenance Bypass- Optional
• Integrated Distribution Cabinet- Optional
• Isolation Transformer- Optional
Communication
• Software Compatibility- Intelligent Power Manager, PowerVision, LanSafe, FORESEER, Power Xpert
• Communication Cards- Standard system includes one ConnectUPS Web/ SNMP/-X Card with an Environment Monitoring Probe. Two communications bays standard.Four communication bays included.
• Remote Inputs/Outputs- Two building alarms inputs and one summary alarm contact (5A@120V) standard
Four more building alarm inputs available with the Communications Expansion
• Option Remote panel- Eight backlit status indicator lamps plus an audible horn
