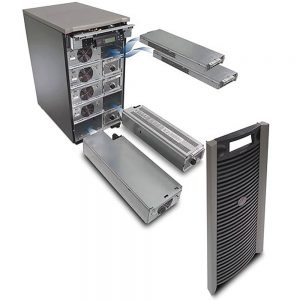

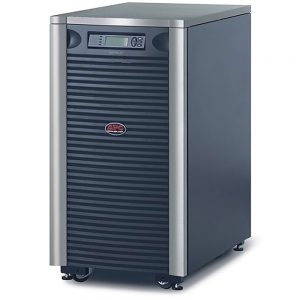

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease footprint or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time. With built-in network manageability, the on-line Symmetra LX is the choice to protect high-performance IT and telecom equipment in computer rooms and small data centers.

Output
• Output power capacity 12.8 KWatts / 12.0 kVA
• Max Configurable Power (Watts) 12.8 KWatts / 16.0 kVA
• Nominal Output Voltage 120V , 208V
• Output Voltage Note Configurable for 120/208 or 120/240 output voltage
• Output Voltage Distortion Less than 5% at full load
• Output Frequency (sync to mains) 47 – 63 Hz
• Output Frequency (not synced) 60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
• Other Output Voltages 240
• Load Crest Factor up to 5 : 1
• Topology Double Conversion Online
• Waveform type Sine wave
• Maximum Output Current 56
• Bypass Internal Bypass (Automatic and Manual)

Input
• Nominal Input Voltage 208V
• Input frequency 45 – 65 Hz (auto sensing)
• Input Connections Hard Wire 4-wire (2PH+N+G)
• Input voltage range for main operations 96 – 138 (Line to Neutral)V
• Input Total Harmonic Distortion Less than 7% for full load
• Other Input Voltages 240V
• Input Power Factor at Full Load 0.98

Batteries & Runtime
• Battery type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Included Battery Modules 4
• Typical recharge time 3hour(s)
• Replacement Battery SYBT5
• Battery Slots Empty 0
• Expected Battery Life (years) 3 – 5
• Extendable Run Time 1
• Extended Run Options APC-Symmetra-LX-12kVA-scalable-to-16kVA-N-1-Tower
• Runtime View Runtime Graph View Runtime Chart
• Efficiency View Efficiency Graph

Communications & Management
• Interface Port(s) DB-9 RS-232 , Smart-Slot
• Pre-Installed SmartSlot™ Cards AP9631
• Control panel Multi-function LCD status and control console
• Audible Alarm Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO) Yes
• Available SmartSlot™ Interface 1

Physical
• Maximum Height 36.9inches ( 937mm , 93.7CM )
• Maximum Width 19.0inches ( 483mm , 48.3CM )
• Maximum Depth 28.6inches ( 726mm , 72.6CM )
• Net Weight 580.0lbs. ( 263.64KG )
• Shipping weight 632.0lbs. ( 287.27KG )
• Shipping Height 46.5inches ( 1181mm , 118.1CM )
• Shipping Width 23.6inches ( 599mm , 59.9CM )
• Shipping Depth 39.25inches ( 997mm , 99.7CM)
• Color Black , Silver
• Units per Pallet 1.0

Environmental
• Operating Temperature 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity 0 – 95 %
• Operating Elevation 0-10000ft ( 0-3000meters )
• Storage Temperature -15 – 45 °C
• Storage Relative Humidity 0 – 95 %
• Storage Elevation 0-15000ft ( 0-4500meters )
• Audible noise at 1 meter from surface of unit 62.0dBA
• Online thermal dissipation 4995.0BTU/hr
