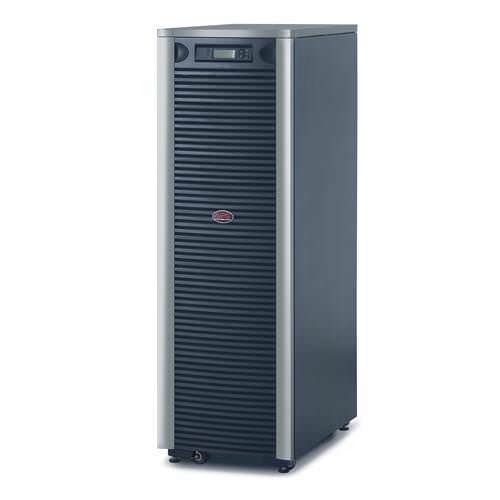

Symmetra LX 4kVA Scalable to 16kVA N+1 Ext. Run Tower UPS – Dual Conversion Online UPS – 30 Minute Full Load – 4kVA – SNMP Manageable. SYA4K16PXR.

Engineered to deliver the highest level of business continuity possible, the Symmetra LX uses a modular, redundant architecture that can scale power and run-time as demand increases or when higher levels of availability are required. Advancements in this next generation design greatly decrease foot print or U-space needed in an equipment rack, increase speed and ease of deployment and reduce repair time.

Output

• Output power capacity – 4.0 kVA
• Max Configurable Power (Watts)- 12.8 KWatts / 16.0 kVA
• Nominal Output Voltage- 120V , 208V
• Output Voltage Note- Configurable for 120/208 or 120/240 output voltage
• Output Voltage Distortion- Less than 5% at full load
• Output Frequency (sync to mains)- 47 – 63 Hz
• Output Frequency (not synced)- 60Hz +/- 0.1% for 60Hz nominal, 50Hz +/- 0.1% for 50Hz nominal
• Other Output Voltages- 240
• Load Crest Factor- up to 5 : 1
• Topology- Double Conversion Online
• Waveform type- Sine wave
• Maximum Output Current- 56
• Output Connections- (1) Hard Wire 4-wire (2PH + N +G) (Battery Backup)
• Bypass- Internal Bypass (Automatic and Manual), Optional External Bypass

Input

• Nominal Input Voltage- 208V
• Input frequency- 45 – 65 Hz (auto sensing)
• Input Connections- Hard Wire 4-wire (2PH+N+G)
• Input voltage range for main operations- 96 – 138 (Line to Neutral) V
• Input Total Harmonic Distortion- Less than 7% for full load
• Other Input Voltages- 240V
• Input Power Factor at Full Load- 0.98

Batteries

• Battery type- Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Battery Volt-Amp-Hour Capacity- 7776

Communications & Management

• Interface Port(s)- DB-9 RS-232 , RJ-45 10/100 Base-T , Smart-Slot
• Control panel- Multi-function LCD status and control console
• Audible Alarm- Audible and visible alarms prioritized by severity
• Emergency Power Off (EPO)- Yes
• Available SmartSlot™ Interface Quantity- 1
