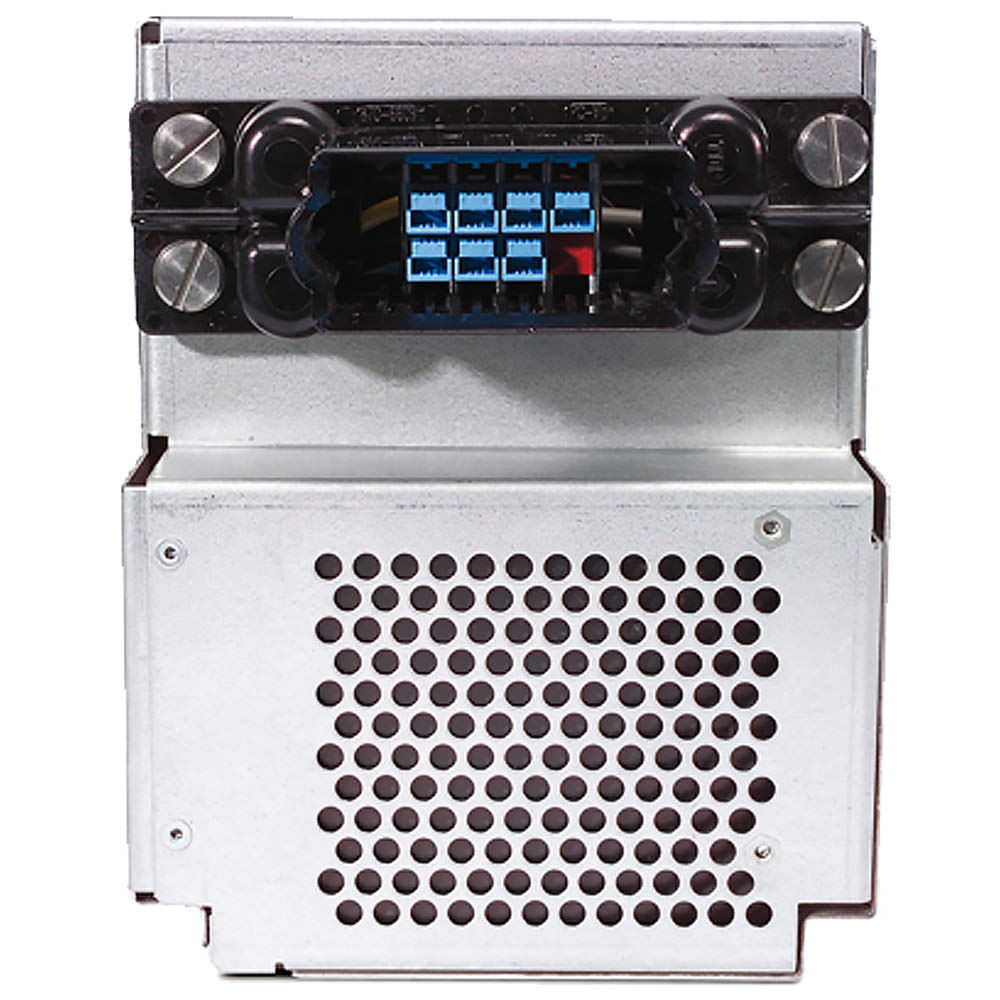

Symmetra LX Battery Module is a hot-pluggable. Allowing you to add or remove servers without having to power off the switch.

Output

• Battery output voltage- 120

Input

• Number of power cords- 1

Batteries & Runtime

• Battery type- Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
• Battery Mounting- Enclosed battery cartridge
• Battery Placement – Internal Battery
• Expected Battery Life (years) – 3 – 5
• RBC Quantity – 1
• Battery blocks per string- 10
• Battery Volt-Amp-Hour Capacity – 1080

Physical

• Maximum Height- 5.5 inches ( 140 , 14.0 cm )
• Maximum Width- 8.26 inches ( 210 , 21.0 cm )
• Maximum Depth- 21.5 inches ( 546 , 54.6 cm )
• Net Weight- 64.0 lbs. ( 29.1 kg )
• Shipping weight- 71.0 lbs. ( 32.28 kg )
• Shipping Height- 15.18 inches ( 385 , 38.5 cm )
• Shipping Width- 11.28 inches ( 286 , 28.6 cm )
• Shipping Depth- 29.52 inches ( 750 , 75.0 cm )
• Units per pallet- 12.0

Environmental

• Operating Environment- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-10000 ft ( 0-3000 meters )
• Storage Temperature- -15 – 45 °C
• Storage Relative Humidity- 0 – 95 %
• Storage Elevation- 0-15000 ft ( 0-4500 meters )

Conformance

• Approvals- CSA, UL 1778
• Standard warranty- 1 year repair or replace

Sustainable Offer Status

• RoHS Compliant
• PEP available in Documentation tab
• EOLI available in Documentation tab
• ts_other_compliance_info China RoHS
