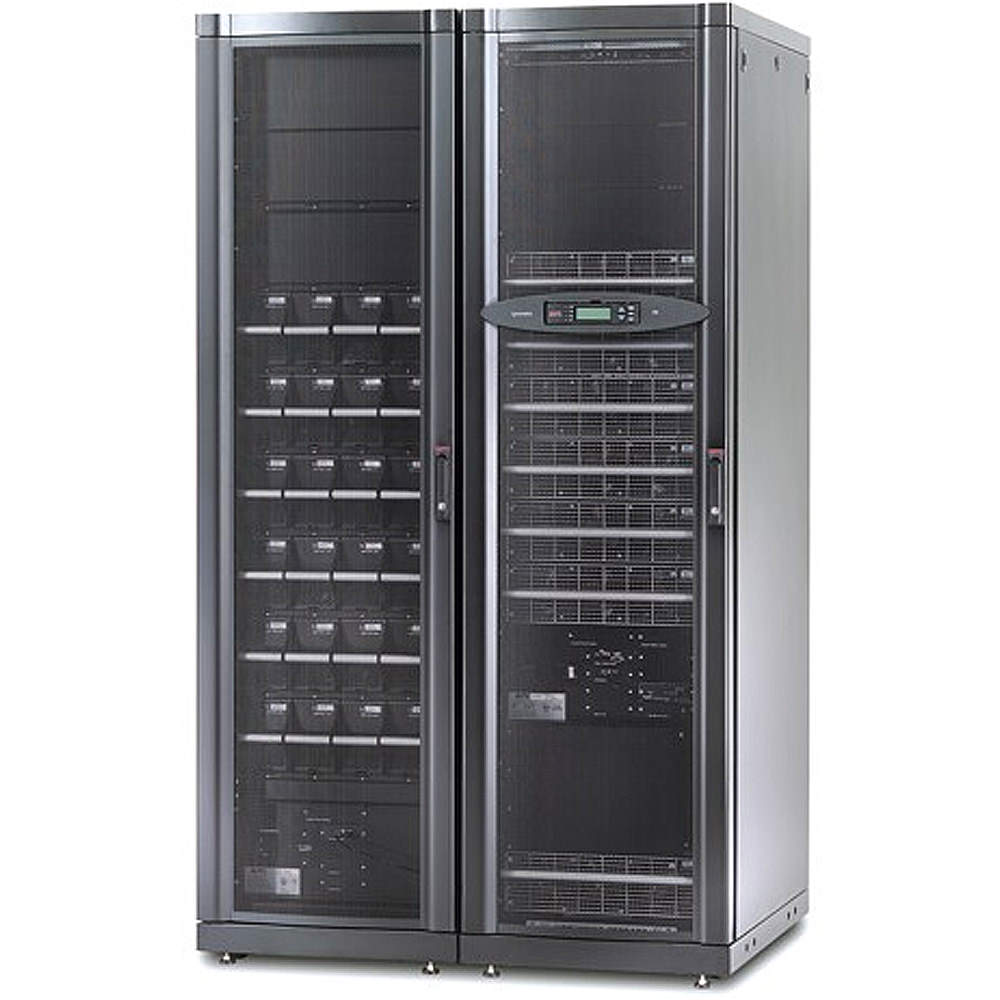

APC Symmetra PX 60kW with Premium Battery Enclosure is a high-efficiency 3-phase UPS that is scaleable as your data center grows up to 80kW/80kVA. Suitable for small to medium data centers or individual zones of large data centers. Our refurbished APC Symmetra PX 80 kW with Premium battery enclosure 208v carries a one year warranty and can usually ship within 48 hours of receiving your purchase order

Add Options

• Power Distribution with Maintenance Bypass 480 volt or 208 volt input available.
• Increase run time with additional battery modules ( SYBT4) or Premium Battery Cabinet
• Power module SYPM10KF for N+1 Redundancy or to keep a spare on site.
• Service options – service agreements are available from local providers.

Output

• Output power capacity- 60 kW / 60 kVA
• Max Configurable Power (Watts)- 80 kW / 80 kVA
• Nominal Output Voltage- 120V,208V,208V 3PH
• Output Voltage Distortion- Less than 3%
• Output Frequency (sync to mains)- 57 – 63 Hz for 60 Hz nominal
• Load Crest Factor- Unlimited
• Waveform type- Sine wave
• Output Connections- (1) Hard Wire 5-wire (3PH + N + G
• Bypass- Built-in Static Bypass

Input

• Nominal Input Voltage- 208V 3PH
• Input frequency- 50/60 Hz +/- 5 Hz (auto sensing)
• Input Connections- Hard Wire 5-Wire (3PH+N+G)
• Input voltage range for main operations- 177 – 240V
• Maximum Short Circuit Withstand (Icw)- 30.0 kA

Batteries

• Battery type- No internal battery – uses external battery system
• Typical recharge time- 2 hour(s)
• Replacement Battery- SYBT4

Communications & Management

• Interface Port(s)- SmartSlot
• Emergency Power Off (EPO)- Yes
• Available SmartSlot™ Interface Quantity- 2
• Pre-Installed SmartSlot™ Cards- AP9617 or newer
• Audible Alarm- Alarm when on battery : distinctive low battery alarm : configurable delays

Physical

• Maximum Height- 81.50 inches (2070 mm)
• Maximum Width- 48.00 inches (1219 mm)
• Maximum Depth- 35.50 inches (902 mm)
• Rack Height- 42U
• Net Weight- 2700.00 lbs.
• 91.00 inches (2311 mm)

Environmental

• Operating Temperature- 32 – 104 °F ( 0 – 40 °C )
• Operating Relative Humidity- 0 – 95 %
• Operating Elevation- 0-10000 feet (0-3000 meters)
• Storage Temperature- -15 – 40 °C
• Storage Relative Humidity- 0 – 95 %
• Storage Elevation- 0-50000ft ( 0-15000meters )
• Audible noise at 1 meter from surface of unit- 71.0dBA
• Online thermal dissipation- 22744.00 BTU/hr
• Protection Class- NEMA 1
