Specifications

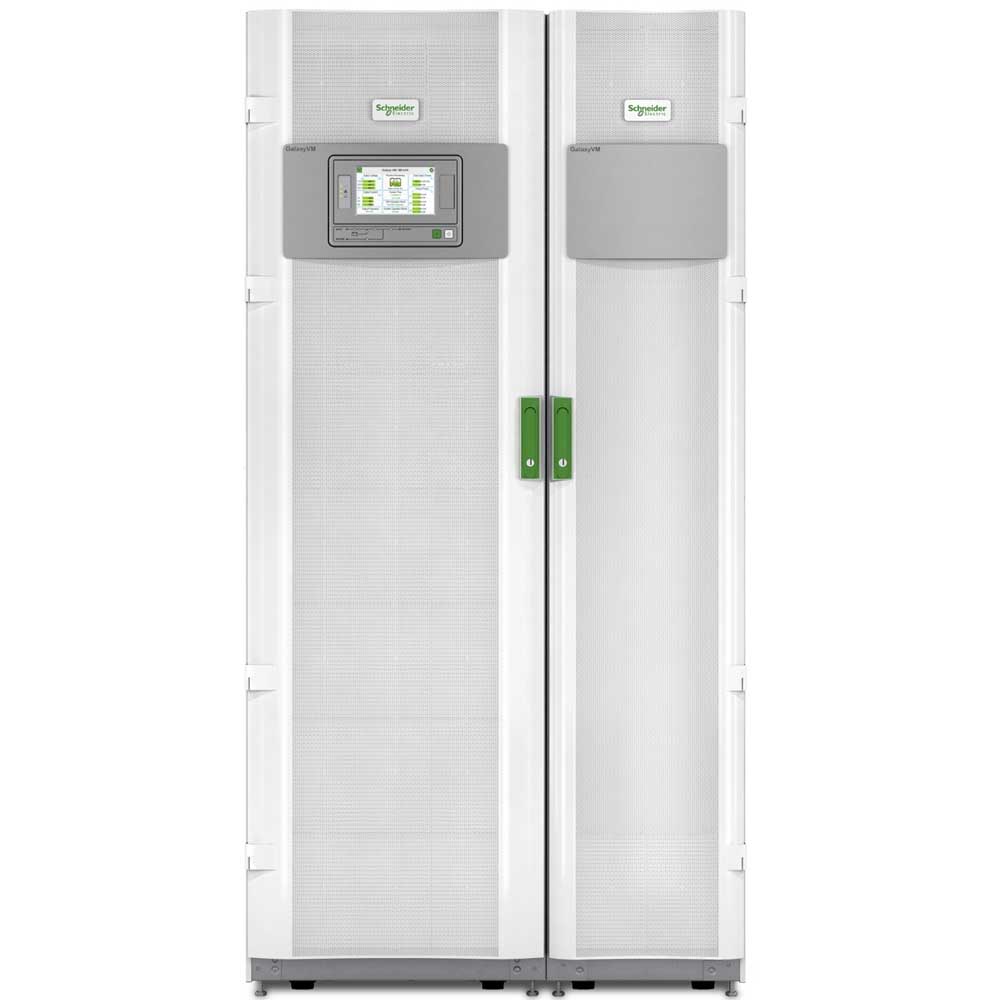

| Presentation | A highly compact, energy efficient, 65kAIC rated 3-phase UPS for data centers, facility and industrial applications. |
|---|---|
| Lead time | Usually Ships within 2 Weeks |
| Main Input Voltage | 480 V 3 phase |
|---|---|
| Main Output Voltage | 480 V 3 phase |
| Kw Rating | 144 kW |
| Rated power in VA | 160 kVA |
| Output connector type | Hard Wire 4-wire (3PH + G) 1 Hard Wire 5-wire (3PH + N + G) 1 |
| Battery Type | External battery system |
| Provided equipment | Dust filter Installation guide Integrated network management Seismic compliance Start-Up Service Top and bottom cable entry |
| Range of Product | Galaxy VM |
| Range Compatibility | Galaxy VM |
| Efficiency |
|
|---|---|
| Included Battery Modules | 0 |
| Battery Slots Empty | 0 |
| Battery Voltage | 480V |
| End of Discharge Battery Voltage | 384 V |
| Maximum short-circuit current | 65 kA |
| End of Discharge Maximum Battery Current | 440 A |
| Overload Operation | 60 seconds @ 125% and 30 seconds @ 150% |
| Battery design life | 5…10 year(s) |
| Battery power in VAH | 0 VAh runtime |
| Battery life | 7…10 year(s) |
| Battery graph comments | Estimated runtimes based on battery vendor data, at typical environmental conditions, with no electrical input and balanced PF = 0.9 output. |
| Extendable Run Time | 0 |
| Bypass Voltage Tolerance | +/-10% settable from +/-4/6/8 and 10% |
|---|---|
| Max Bypass Input Current | 217 A |
| Bypass Protection Device | 400 A |
| Redundant | No |
| Product or Component Type | Uninterruptible power supply (UPS) |
| color | White |
|---|---|
| Height | 77.56 in (197 cm) |
| Width | 39.45 in (100.2 cm) |
| Depth | 33.62 in (85.4 cm) |
| Net Weight | 1494.80 lb(US) (678.03 kg) |
| USB compatible | No |
| Input Frequency | 40 – 70 Hz |
|---|---|
| Number of input connectors | 1 Hard Wire 3-wire (3PH + G) |
| Efficiency at full load | 360…576 V adjustable 480 V 360…576 V 480 V |
| Maximum Input Current per Phase | 278 A |
| Switching current capacity | 400 A |
| Maximum Short Circuit Withstand (Icw) | 65 kA |
| Input Total Harmonic Distortion | Less than 3% for full load |
| Input protection type | 3-pole breaker |
| Inrush current | 200A peak |
| Load power factor | 0.5 leading to 0.5 lagging |
| Input Power Factor at Full Load | 1 |
| Max Configurable Power (Watts) | 144 kW |
|---|---|
| Harmonic distortion | Less than 2% |
| Output frequency | 50/60 Hz +/- 1 Hz sync to mains 50/60 Hz +/- 1 Hz not synced |
| Crest factor | Unlimited |
| Waveform Type | Sine wave |
| Output voltage tolerance | +/- 1% static and +/- 3% at 100% load step |
| Output Voltage THD | < 2% linear load and < 3% non-linear load |
| Overload Operation | 10 minutes @ 125% and 60 seconds @ 150% |
| Required Output Current Protection | 300 A |
| Neutral Output Current | 195 A |
| Bypass type | Built-in Static Bypass |
| Efficiency at full load | 95.5 % in battery operation) |
| Maximum configurable power in VA | 160 kVA |
| Product Certifications | cUL Listed ENERGY STAR V2.0 (USA) FCC part 15 class A UL 1778 |
|---|---|
| Standards | EN/IEC 62040-3 IBC 2012 and CBC2013 to Sds=2.02g OSHPD |
| Ambient air temperature for operation | 32…104 °F (0…40 °C) |
|---|---|
| Relative Humidity | 0…95 % |
| Operating altitude | 0…3333 ft |
| Ambient Air Temperature for Storage | 5…104 °F (-15…40 °C) |
| Storage Relative Humidity | 0…95 % |
| Storage altitude | 0…49212 ft (0…14999.8 m) |
| Acoustic level | 65 dBA |
| Heat dissipation | 21160 Btu/h |
| IP degree of protection | IP20 |
| Free slots | 2 |
|---|---|
| Control panel | 7″ touch screen display |
| Emergency Power Off (EPO) | Optional |
| GTIN | 731304746577 |
|---|
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 84.88 in (215.6 cm) |
| Package 1 Width | 41.73 in (106 cm) |
| Package 1 Length | 58.66 in (149 cm) |
| Package weight(Lbs) | 1586.007 lb(US) (719.4 kg) |
