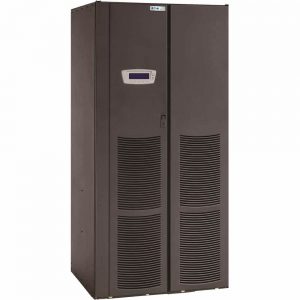

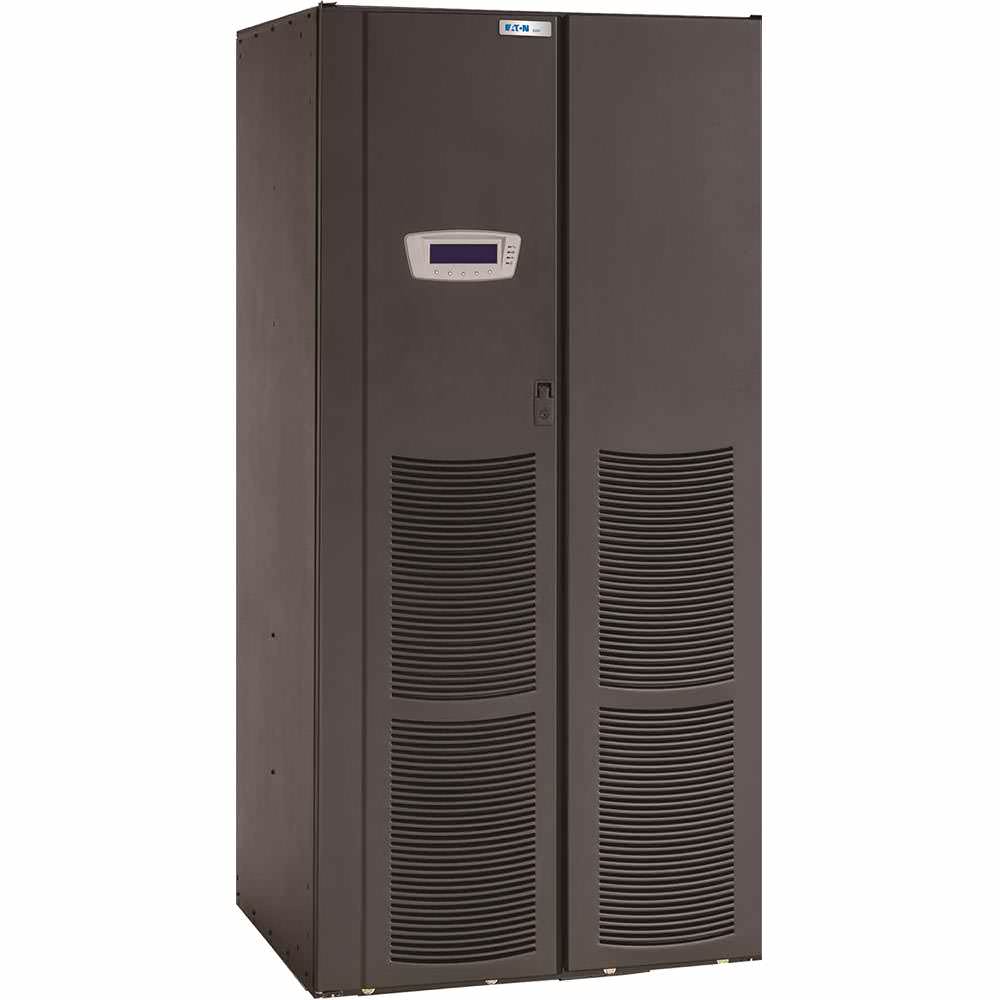

Eaton 9390-160 Model 160

The Eaton® 9390 is a double-conversion uninterruptible power system (UPS) that resolves all utility power problems and supplies clean, continuous, uninterruptible power to connected equipment. Whether you’re selecting a UPS for a branch office, manufacturing floor, medical facility, or data center, there’s a 9390 model that delivers just the right combination of performance and price for your needs.

Eaton 9390-160 Model 160 Features and Benefits • Transformer-less design – Increased efficiency over transformer-based UPSs – Smaller footprint and higher power density – Lower installation and shipping costs • Flexible Installation – Mount directly next to a wall or even in a corner. – Completely accessible for service and maintenance from front panel – Top and bottom cable entry • Voltage Options – Conventional 208V and 480V for standard US system designs

The energy-efficient Eaton 9390 UPS provides backup power and scalable battery runtimes in a small footprint for mid-size data centers, medical equipment and other critical systems. With the groundbreaking Energy Saver System, the 9390 operates at 99% UPS efficiency and can pay for itself in three to five years—without sacrificing reliability.

General

• Efficiency- 99% with Energy saver mode
• Parallel Capability- Four Modules with tie cabinet
• Audible Noise- <65 dBA @ 1 meter
• Alitiude (max)- 2000m at 104f or 40c

Input

• Voltage- 480
• Voltage Range- +10% / -15%2
• Frequency range- 55-65 Hz
• Power Factor- 0.99 (min)
• Input Current Distortion-

Output

• Voltage- 480
• Regulation- ±1%
• Inverter- PWM with IGBT Switching
• Voltage THD- < 2% (100% linear load); < 5% (non-linear load)
• Load Power Factor Range- Down to 0.9pf leading without de-rating
• Heat dissipation(BTU/Hr x 1000/Hr)- 208V: 43.8

Battery

• Battery types- VRLA, AGM, Gel, Wet, Eaton batteries also available
• Battery voltage- 384 – 480 V
• Temperature Compensation- Optional

Dimensions & Weights

• Height- 73.7 inches
• Width- 35.6 inches
• Depth- 31.6 inches
• Weight- 1,060 lb

Serviceability

• Standard

Certification

• Safety- UL1778, cUL
• EMC- IEC62040-2 EN50091 Class A (restricted access)
• Surge- ANSI C62, 41 Cat. A&B

Accessories

• Module tie cabinet- Optional
• External Maintenance Bypass- Optional
• Integrated Distribution Cabinet- Optional
• Isolation Transformer- Optional

Communication Options

• Software Compatibility- Intelligent Power Manager, PowerVision, LanSafe, FORESEER, Power Xpert
• Communication Cards- Standard system includes one ConnectUPS Web/ SNMP/-X Card with an Environment Monitoring Probe. Two communications bays standard. Four communication bays included
• Remote Inputs/Outputs- Two building alarms inputs and one summary alarm contact (5A@120V) standard Four more building alarm inputs available with the Communications Expansion
• Option Remote panel- Eight backlit status indicator lamps plus an audible horn
